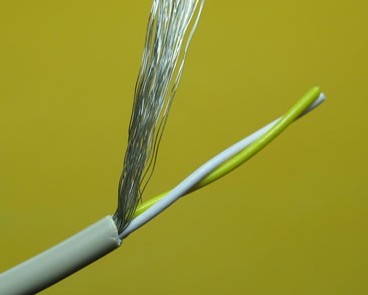

AFFP-260鍍銀高溫屏蔽電纜
AFFP-260鍍銀高溫屏蔽電纜腐蝕性能，抗油、強酸、強堿、強氧化劑等，具有優良的電氣J緣性能，耐高電壓，高頻損耗小，不吸潮，J緣電阻大；具有優良的耐燃、耐老化性能，使用壽命長。
AFFP-260鍍銀高溫屏蔽電纜產品技術參數
6、顏 色：紅/黃/蘭/白/黑/黃綠/棕/綠等
5、護 套：FEP（200℃）或PFA（250℃）鐵氟龍
4、J 緣：FEP（200℃）或PFA（250℃）鐵氟龍
3、導 體：絞合鍍錫或鍍銀銅線
2、工作溫度：-60～+200℃/250℃
1、額定電壓：300/500V
產品特性：
執行標準：QB/2008-06
產品型號：AFFP-260
6、顏 色：紅/黃/蘭/白/黑/黃綠/棕/綠等
5、護 套：FEP（200℃）或PFA（250℃）鐵氟龍
4、J 緣：FEP（200℃）或PFA（250℃）鐵氟龍
3、導 體：絞合鍍錫或鍍銀銅線
2、工作溫度：-60～+200℃/250℃
1、額定電壓：300/500V
產品特性：
執行標準：QB/2008-06
產品型號：AFFP-260
|
芯數×截面
（mm2）
|
導體結構
根數/線徑
|
J緣
|
護套
|
20℃時導體直流電阻（Ω/km）
|
||
|
厚度
|
外徑
|
厚度
|
外徑
|
|||
|
2×0.12
|
7/0.15
|
0.20
|
0.85
|
0.25
|
2.20
|
150
|
|
3×0.12
|
7/0.15
|
0.20
|
0.85
|
0.25
|
2.30
|
150
|
|
4×0.12
|
7/0.15
|
0.20
|
0.85
|
0.25
|
2.60
|
150
|
|
5×0.12
|
7/0.15
|
0.20
|
0.85
|
0.25
|
2.80
|
150
|
|
6×0.12
|
7/0.15
|
0.20
|
0.85
|
0.25
|
3.10
|
150
|
|
7×0.12
|
7/0.15
|
0.20
|
0.85
|
0.30
|
3.15
|
150
|
|
2×0.2
|
7/0.20
|
0.20
|
1.0
|
0.25
|
2.50
|
83.5
|
|
3×0.2
|
7/0.20
|
0.20
|
1.0
|
0.25
|
2.60
|
83.5
|
|
4×0.2
|
7/0.20
|
0.20
|
1.0
|
0.25
|
2.90
|
83.5
|
|
5×0.2
|
7/0.20
|
0.20
|
1.0
|
0.25
|
3.20
|
83.5
|
|
6×0.2
|
7/0.20
|
0.20
|
1.0
|
0.30
|
3.60
|
83.5
|
|
7×0.2
|
7/0.20
|
0.20
|
1.0
|
0.30
|
3.60
|
83.5
|
|
19×0.2
|
7/0.20
|
0.20
|
1.0
|
0.40
|
5.80
|
83.5
|
|
2×0.35
|
19/0.16
|
0.25
|
1.30
|
0.25
|
3.10
|
49.5
|
|
3×0.35
|
19/0.16
|
0.25
|
1.30
|
0.25
|
3.20
|
49.5
|
|
4×0.35
|
19/0.16
|
0.25
|
1.30
|
0.25
|
3.65
|
49.5
|
|
5×0.35
|
19/0.16
|
0.25
|
1.30
|
0.30
|
4.10
|
49.5
|
|
6×0.35
|
19/0.16
|
0.25
|
1.30
|
0.30
|
4.50
|
49.5
|
|
7×0.35
|
19/0.16
|
0.25
|
1.30
|
0.30
|
4.50
|
49.5
|
|
19×0.35
|
19/0.16
|
0.25
|
1.30
|
0.40
|
7.30
|
49.5
|
|
2×0.5
|
19/0.18
|
0.25
|
1.40
|
0.25
|
3.30
|
36.0
|
|
3×0.5
|
19/0.18
|
0.25
|
1.40
|
0.25
|
3.40
|
36.0
|
|
4×0.5
|
19/0.18
|
0.25
|
1.40
|
0.30
|
4.0
|
36.0
|
|
5×0.5
|
19/0.18
|
0.25
|
1.40
|
0.30
|
4.40
|
36.0
|
|
6×0.5
|
19/0.18
|
0.25
|
1.40
|
0.30
|
4.80
|
36.0
|
|
7×0.5
|
19/0.18
|
0.25
|
1.40
|
0.30
|
4.80
|
36.0
|
|
19×0.5
|
19/0.18
|
0.25
|
1.40
|
0.50
|
8.0
|
36.0
|
|
2×0.75
|
19/0.23
|
0.25
|
1.70
|
0.30
|
4.0
|
22.7
|
|
3×0.75
|
19/0.23
|
0.25
|
1.70
|
0.30
|
4.0
|
22.7
|
|
4×0.75
|
19/0.23
|
0.25
|
1.70
|
0.30
|
4.70
|
22.7
|
|
5×0.75
|
19/0.23
|
0.25
|
1.70
|
0.35
|
5.30
|
22.7
|
|
6×0.75
|
19/0.23
|
0.25
|
1.70
|
0.35
|
5.80
|
22.7
|
|
7×0.75
|
19/0.23
|
0.25
|
1.70
|
0.35
|
5.80
|
22.7
|
|
19×0.75
|
19/0.23
|
0.25
|
1.70
|
0.50
|
9.50
|
22.7
|
|
2×1
|
19/0.26
|
0.25
|
1.80
|
0.30
|
4.20
|
19.0
|
|
3×1
|
19/0.26
|
0.25
|
1.80
|
0.35
|
4.30
|
19.0
|
|
4×1
|
19/0.26
|
0.25
|
1.80
|
0.35
|
5.10
|
19.0
|
|
5×1
|
19/0.26
|
0.25
|
1.80
|
0.35
|
5.60
|
19.0
|
|
6×1
|
19/0.26
|
0.25
|
1.80
|
0.40
|
6.20
|
19.0
|
|
7×1
|
19/0.26
|
0.25
|
1.80
|
0.40
|
6.20
|
19.0
|
|
8×1
|
19/0.26
|
0.25
|
1.80
|
0.40
|
6.80
|
19.0
|
|
19×1
|
19/0.26
|
0.25
|
1.80
|
0.60
|
10.20
|
19.0
|
|
2×1.5
|
19/0.32
|
0.30
|
2.25
|
0.35
|
5.20
|
11.7
|
|
3×1.5
|
19/0.32
|
0.30
|
2.25
|
0.35
|
5.30
|
11.7
|
|
4×1.5
|
19/0.32
|
0.30
|
2.25
|
0.40
|
6.20
|
11.7
|
|
5×1.5
|
19/0.32
|
0.30
|
2.25
|
0.40
|
6.80
|
11.7
|
|
6×1.5
|
19/0.32
|
0.30
|
2.25
|
0.40
|
7.50
|
11.7
|
|
7×1.5
|
19/0.32
|
0.30
|
2.25
|
0.40
|
7.60
|
11.7
|
|
19×1.5
|
19/0.32
|
0.30
|
2.25
|
0.60
|
12.5
|
11.7
|
|
2×2.5
|
19/0.41
|
0.40
|
2.80
|
0.40
|
6.40
|
6.86
|
|
3×2.5
|
19/0.41
|
0.40
|
2.80
|
0.40
|
6.40
|
6.86
|
|
4×2.5
|
19/0.41
|
0.40
|
2.80
|
0.40
|
7.60
|
6.86
|
|
5×2.5
|
19/0.41
|
0.40
|
2.80
|
0.50
|
10.30
|
6.86
|
|
6×2.5
|
19/0.41
|
0.40
|
2.80
|
0.50
|
9.40
|
6.86
|
|
7×2.5
|
19/0.41
|
0.40
|
2.80
|
0.50
|
9.40
|
6.86
|
|
19×2.5
|
19/0.41
|
0.40
|
2.80
|
0.70
|
15.40
|
6.86
|
