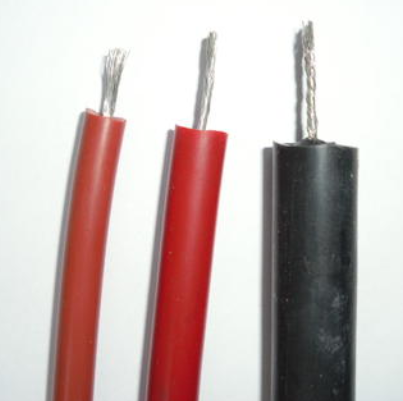

AGG硅橡膠絕緣高壓安裝線
AGG硅橡膠絕緣高壓安裝線技術參數：
•額定溫度：-60℃∽＋200℃
•額定電壓：10KVDC∽150KVDC
•導體材料：鍍錫銅絲
•絕緣材料：硅橡膠
•護套顏色:紅、黃、蘭、白、黑、綠、棕、橙、灰等
•用途：AGG硅橡膠絕緣高壓安裝線用于電子電器及其它器械的高電壓導線(如自動化設備)
|
導體截面積(mm2) |
導體結構根/(mm) |
標稱外徑 |
20℃導體電阻≤Ω/km |
|||
|
AGG-10KVDC |
AGG-20KVDC |
AGG-30KVDC |
AGG-50KVDC |
|||
|
0.2 |
7/0.20 |
3 |
4.2 |
6.6 |
8.6 |
95 |
|
0.35 |
19/0.16 |
3.2 |
4.4 |
6.8 |
8.8 |
53.1 |
|
0.5 |
16/0.20 |
3.4 |
4.6 |
7 |
9 |
40.1 |
|
0.75 |
24/0.20 |
4 |
4.8 |
7.2 |
9.2 |
26.7 |
|
1 |
32/0.20 |
4.2 |
5.4 |
8.2 |
9.7 |
20 |
|
1.5 |
48/0.20 |
4.8 |
5.6 |
8.6 |
10 |
13.7 |
|
2.5 |
49/0.25 |
5.4 |
6.6 |
9.4 |
11.2 |
8.21 |
|
4 |
56/0.30 |
6 |
7.2 |
10.1 |
11.8 |
5.09 |
|
6 |
84/0.30 |
7.2 |
8.6 |
11.2 |
13.6 |
3.39 |
|
導體截面積(mm2) |
導體結構根/(mm) |
標稱外徑 |
20℃導體電阻≤Ω/km |
|||
|
AGG-80KVDC |
AGG-100KVDC |
AGG-120KVDC |
AGG-150KVDC |
|||
|
4 |
56/0.30 |
15.8 |
18.8 |
21.8 |
25.8 |
5.09 |
|
6 |
84/0.30 |
16.6 |
19.6 |
22.6 |
26.6 |
3.39 |
|
10 |
84/0.40 |
18.6 |
21.6 |
24.6 |
28.6 |
2.0 |
